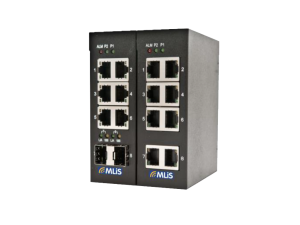

MLiS MLB-E4105-8 / MLB-E4106-8-F provides 8 10/100M Ethernet ports to fulfill the needs of the rapid growth of communication traffic in industrial network. MLB unmanaged series are designed for supporting standard industrial applications without complex setup to make the network truly plug-and-play. With the QoS and traffic storm control, MLB series switches are able to provide the high reliability user experience in the complex network.

Features:

• Provide 8 10/100M Copper ports plus 2 ports 100FX or 1000BaseF (SX/LX/LH)(MLB-E4106-8-F)
• IEEE 802.3x flow control & back-pressure
• 9K Jumbo frames
• L2 wire-speed switching engine
• 8K MAC forwarding addresses
• Queues per port: 4
• Support 802.1p & TOS/DS QoS
• Multicast/Broadcast/Flooding Storm Control
• Fanless & wide operating temperature range (-40 to +75°C)
• Dual power input (12~58 VDC) & Reverse power protection
• IP30
• DIN-Rail and wall mounting option
